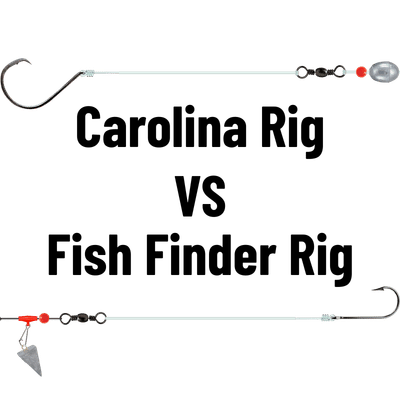

What's the difference?
They're built on the same mechanical idea but designed for completely different fish, environments, and presentations. Once you understand why each rig was developed, the differences become obvious—even if the components look nearly identical at the tackle shop.
Let's take a closer look.

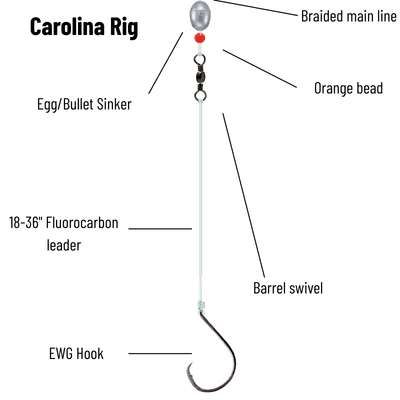

The Carolina Rig: Designed for Bass, Built for Bottom Searching
The Carolina rig was developed primarily as a bass fishing tool, and its whole purpose is to let you cover water efficiently while keeping a soft plastic bait moving naturally just above the bottom.
Here's how it works in practice:
the heavy weight—usually a 1/2 oz to 1 oz bullet or egg sinker—slides freely on your main line and hits the bottom when you cast. The bead sits between the weight and the barrel swivel, and that swivel is the anchor point for your leader, which is typically 12 to 24 inches of fluorocarbon running down to a hook dressed with a soft plastic creature bait, lizard, or worm.
When you drag or sweep the Carolina rig across the bottom, the weight plows through the substrate, kicking up little puffs of mud or sand. That commotion actually attracts bass. Meanwhile, your leader and bait trail behind the weight, floating and darting in a way that looks like something alive is trying to escape.
The key word there is trailing. The bait doesn't sit still. It reacts to every twitch of your rod and every pause in your retrieve, which is exactly what triggers a reaction strike from a bass that might otherwise ignore a stationary presentation.
Most Carolina rig fishermen use fairly heavy tackle—baitcasting gear in the 12 to 17 lb range—because you're fishing structure, and when a bass grabs that bait and runs, you need to control it before it wraps you around a dock piling or a submerged tree. The technique is all about movement: cast it out, let it settle, then drag it slowly along the bottom with long sweeps of the rod while reeling up the slack on the drop.
Now, let's look at the fish finder rig.

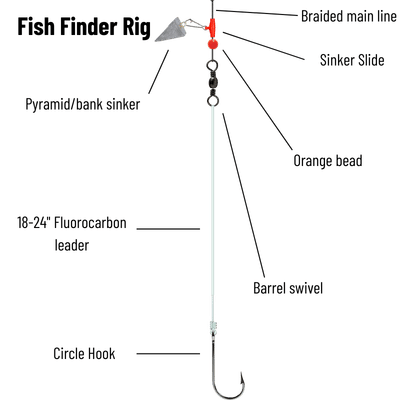

The Fish Finder Rig: Designed for Surf and Current, Built for Waiting
The fish finder rig takes that same sliding weight concept and applies it to a completely different fishing scenario. If you've ever watched a surf fisherman heave a chunk of cut bait 80 yards into the ocean and then prop their rod in a sand spike and crack open a drink, there's a good chance they're fishing a fish finder rig.
The mechanics are similar on the surface.
A pyramid sinker or egg sinker slides on the main line, a swivel stops it, and a leader runs down to a hook baited with cut mullet, bunker, shrimp, or squid. But here's where the philosophy diverges entirely: the fish finder rig is designed for stationary fishing in moving water.
The pyramid sinker digs into the sandy surf bottom and holds position against the current or wave action. The bait sits on the bottom or floats just above it, staying in one spot while the current does the work of pushing the scent trail out into the water column.
More importantly, the sliding weight mechanism serves a very specific purpose in a surf context. When a redfish, striper, or drum picks up your bait, it can move with it without immediately feeling the full resistance of that heavy sinker. The line slides freely through the weight, giving the fish a second or two to fully commit to the bite before it detects anything suspicious. That's crucial when you're fishing for cautious, hard-fighting species that will drop a bait the instant something feels wrong.
You're not moving this rig. You're not sweeping it across structure or trying to imitate a fleeing crawfish. You're planting it, waiting, and trusting that the fish will find the bait on its own - which, in high-traffic surf zones with good current, they usually do.
Why the Confusion Makes Sense (and Why It Matters)
It's completely understandable that these two rigs get mixed up. Both use a free-sliding weight to separate the sinker from the bait, and both rely on a leader to add some distance and natural movement between the weight and the hook. The sliding weight design is genuinely brilliant in both applications, just for different reasons.
In bass fishing, it means the bait can move independently of the weight during your retrieve. Whereas, in surf fishing, it means a cautious fish can pick up the bait without feeling that heavy sinker immediately.
The mistake most beginners make is trying to fish a Carolina rig like a fish finder rig, or vice versa.
Imagine dropping a big pyramid sinker into a bass lake and waiting for a largemouth to come find your plastic lizard. It'll sit there all day. Or picture someone on the surf beach slowly dragging a Carolina rig across the sand—they'd spend more time re-rigging after losing their bait to sand crabs and wave action than actually fishing.
The environment dictates everything. Bass fishing is almost always an active, searching game. You're covering water, triggering strikes, and moving constantly. Surf fishing is a patience game rooted in scent, current, and placing your bait in the right zone and leaving it there. The rigs look the same because the free-sliding weight is the right solution in both cases—but the reason it's the right solution is completely different.
Quick Way to Remember the Difference
If you're ever trying to remember which rig is which, just ask yourself one question: Am I chasing fish, or am I waiting for them?
If you're working a reservoir, lake, or river for bass, crappie, or catfish and you want to cover water with a natural-looking bait trailing behind you, you want a Carolina rig. Keep your leader light and long, use a streamlined weight, and focus on technique.
If you're on a beach, a pier, or a tidal flat where current does the heavy lifting and you're targeting species like redfish, drum, flounder, or striped bass with natural bait, you want a fish finder rig. Use a heavier sinker appropriate for the surf, keep your leader modest, and let the scent do the work.
Two rigs, same basic components, completely different jobs. Once you know which situation you're in, picking the right one becomes second nature.
